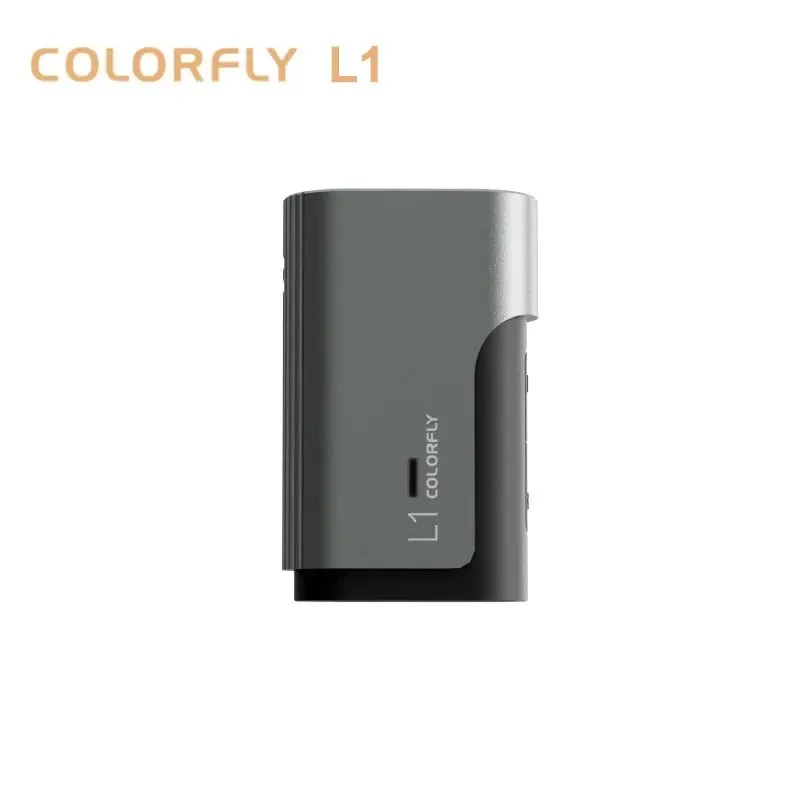

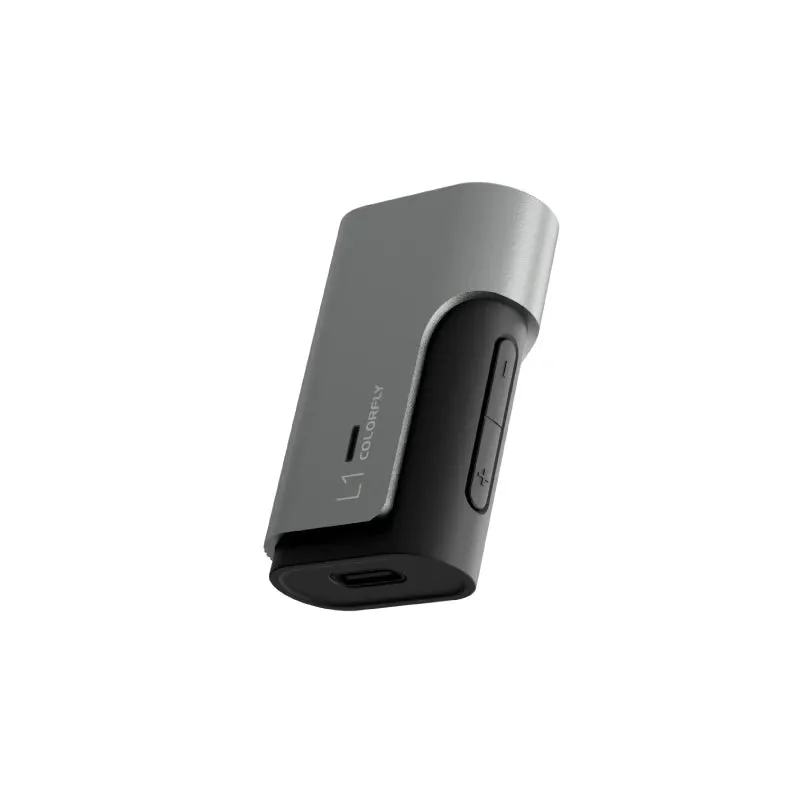

COLORFLY L1 USB DAC Amplifier
Key Features:
- Dual CS43131 Reference DACs: Delivers Hi-Res PCM 32-bit/768kHz and native DSD256 decoding.
- 3.5mm Unbalanced & 4.4mm Balanced Output: Supports a wide range of earphones and headphones, up to 150mW @ 32Ω (balanced).
- Colorfly Audio Player Architecture: Second-gen Jitterkill femtosecond clock and async transmission for pure, clear sound.
- High/Low Gain Modes: Instantly adapt output to different IEMs/headphones with a button press.
- Digital Filter Options: Five selectable sound filters for personalized listening.
- Cross-Platform Compatibility: Plug-and-play with Windows, MacOS, iOS, iPadOS, Android, Nintendo Switch, PS5 and more.
- Ribbon Cable Design: High-purity silver-plated monocrystalline copper conductors for stable signal.
- Ultra-Portable: Lightweight (15g) and compact (43×27×14mm) full-arc screwless chassis.
- Volume Memory: Remembers your last-used volume across devices.
- Game Mode: UAC1.0 for high-quality audio on gaming consoles.
Technology and Innovations:
The COLORFLY L1 USB DAC amplifier leverages Colorfly's advanced player architecture, including the second-generation Jitterkill femtosecond clock technology for ultra-low jitter and asynchronous USB data transmission. The L1’s coaxial double-layer design ensures both strength and lightweight durability, while the screwless, seamless arc form factor offers a premium feel. Its dual CS43131 DACs achieve true reference-level performance, and the 49-strand, silver-plated monocrystalline copper ribbon cable provides stable, lossless signal transmission. Five digital filters, gain switching, and volume memory allow you to customize your listening experience across all platforms.
Technical Specifications:
| Parameter | Details |
|---|---|
| DAC Chips | Dual CS43131 |
| Decoding Support | PCM 32-bit/768kHz, Native DSD256, DSD128/Dop |
| Frequency Response | 20Hz–20kHz |
| Dynamic Range | 130dB |
| SNR | 130dB |
| THD N | -113dB @ 600Ω (balanced), -104dB @ 32Ω 30mW (balanced), -112dB @ 600Ω (unbalanced), -97dB @ 32Ω 30mW (unbalanced) |
| Output Ports | 3.5mm Unbalanced, 4.4mm Balanced |
| Max Output Level | 2Vrms @ 600Ω (unbalanced), 4Vrms @ 600Ω (balanced) |
| Max Output Power | 65mW @ 32Ω (unbalanced), 150mW @ 32Ω (balanced) |
| Gain Modes | High / Low (user-selectable) |
| Digital Filters | 5 selectable |
| Game Mode | UAC1.0, supports Nintendo Switch, PS5, etc. |
| Platform Support | Windows, MacOS, iOS, iPadOS, Android, Nintendo Switch, PS5 |
| Chassis | Coaxial double-layer aluminum alloy, full-arc seamless design |
| Cable | Type-C, high-purity silver-plated monocrystalline copper ribbon |
| Dimensions | 43 × 27 × 14 mm |
| Weight | 15g |
| Firmware Upgrade | Supported |

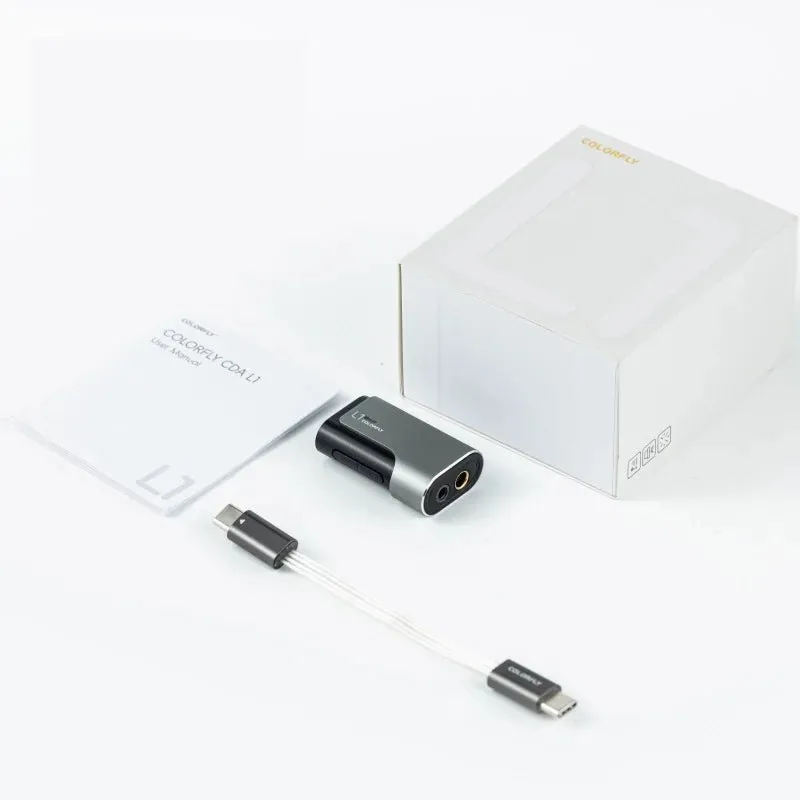

Package Includes:
- 1x COLORFLY L1 USB DAC Amplifier
- 1x Type-C Ribbon Cable
